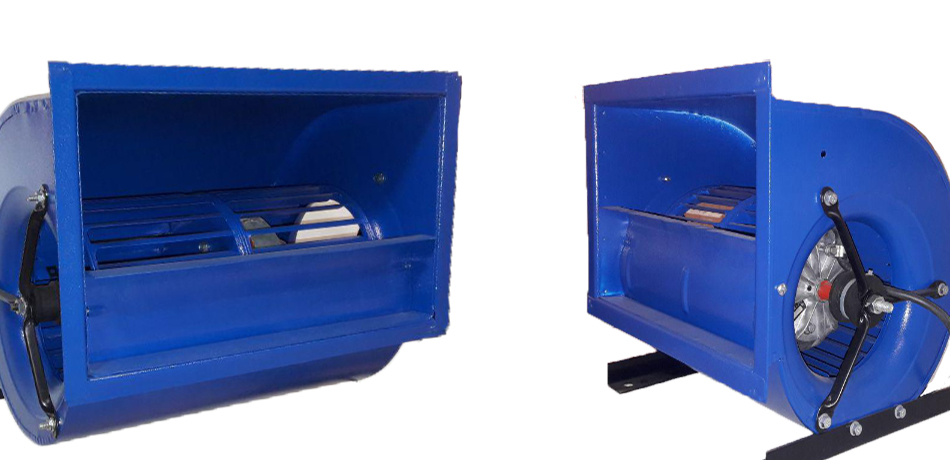

D112- E10-4 (7-9) CFM=900

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Frequency	50 [Hz]
Current max @ free air	1.1 [A]
Power max @ free air	230 [W]
Fan speed @ free air	1100 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.90
Capacitor	6 [μF] 400 [V]
Net Weight	8 [kg]
Starting Torque	1.5 [N.m]
Starting Current max	2 [A]
Air Temperature max	60 [ºC]

2,635تعداد نمایش :

توضیح
فرم سفارش

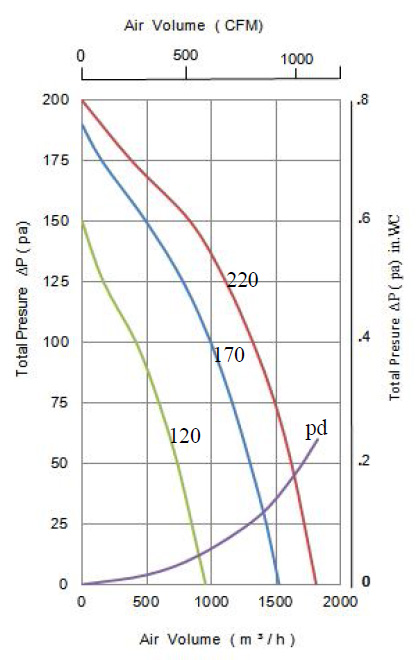

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	50	75	*100*	*150*	*200*
*120*	1030	951	820	650	145
*170*	1250	1243	1115	1012	467
*220*	1510	1551	1465	1315	792	0

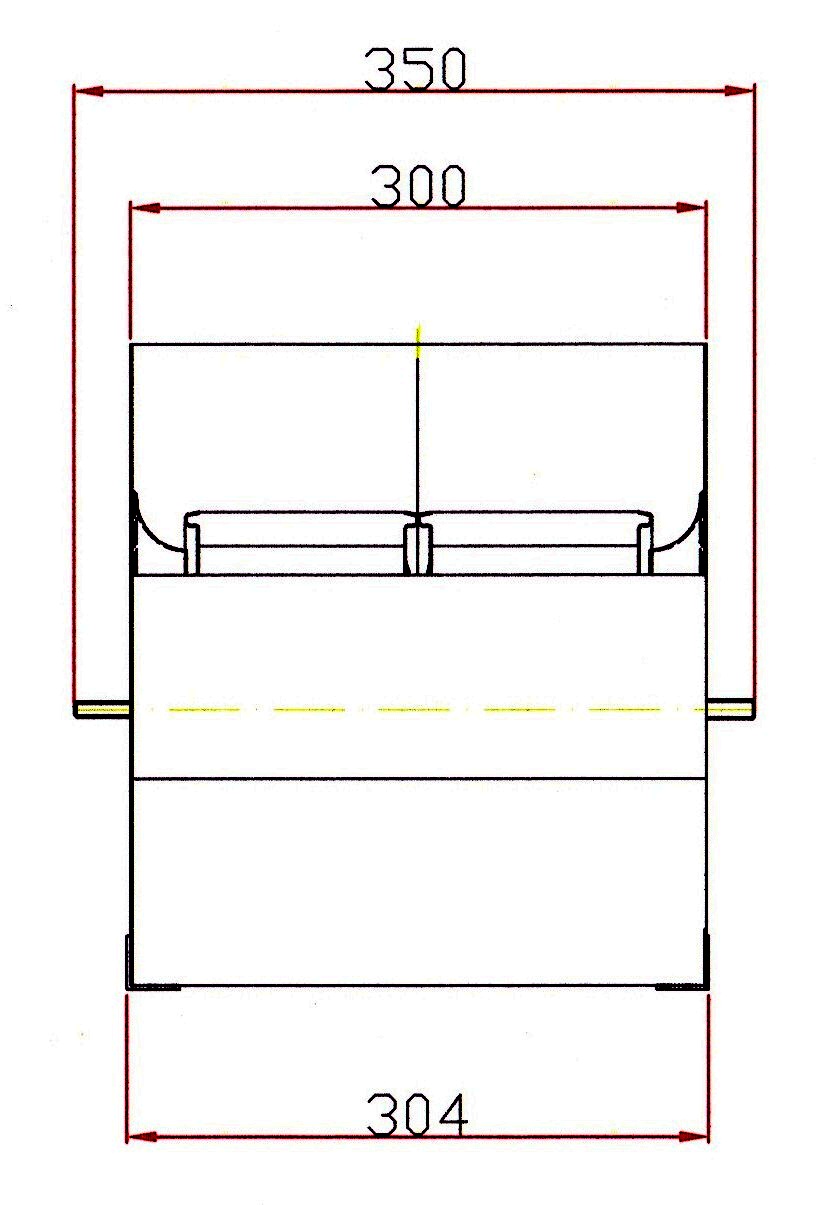

Wheel Diameter = 180 mm = 7 in

29 Blades , 20 mm = (4/5)" Chord Width

Tip Speed   = rpm * 0.012 [m/s]

                 = rpm * 2.37 [FPM]

Outlet Area = 0.048 [m²] = 0.52 [SQ.FT.]
