D644 /A-E65-6 CFM4000

مشخصات فنی
Voltage Range 100 ~ 220 [V]
Frequency 50 [Hz]
Current max @ free air 5.0 [A]
Power max @ free air 1050 [W]
Fan speed @ free air 700 [rpm]
Insulation Class H
Protection Class IP65
(Power Factor (cos φ 0.95
Capacitor 30 [μF] 400 [V]
Net Weight 32 [kg]
Starting Torque 4 [nm]
Starting Current max 7 [A]
Air Temperature max 60 [ºC]
2,291تعداد نمایش :

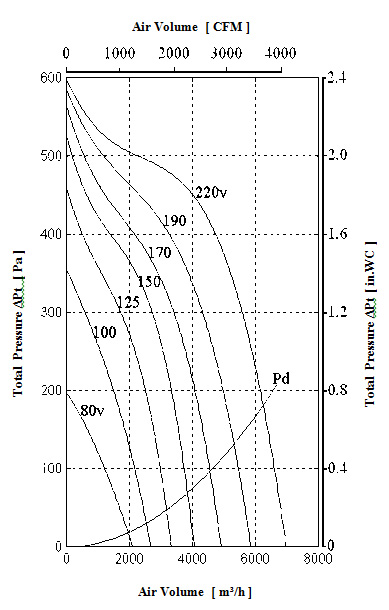

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part    related to Fan Outlet Area (Curve for free blowing fan).  Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure   is shown below system line Pd and Static     Pressure is shown above that line

\
Voltage [V] Air Volume  [ m³/h ]  @  ρ=1.2  kg/m³
Free Air Total  Pressure  ΔPt [Pa]

100

200

300

400

500

80

1970

1210









100

2540

2160

1500

610





125

3170

2980

2510

1720

510



150

3850

3740

3340

2730

1390

180

170

4550

4540

4080

3410

2130

560

190

5320



4980

4310

3240

1170

220

6240



6150

5570

4730

2260


Wheel  Diameter  =  333 mm  =  13 1/8 "
 40 Blades , 25 mm = 1 " Chord Width
 Tip Speed   = rpm * 0.017  [m/s]
  = rpm * 3.45 [FPM]
  Outlet Area = 0.10 [m²] = 1.07 [SQ.FT.]

Voltage [V] Sound Pressure Level  dB(A)

80

100

125

150

170

190

220

Inlet

46

53

57

60

64

66

69

Outlet

48

54

58

62

65

68

70
