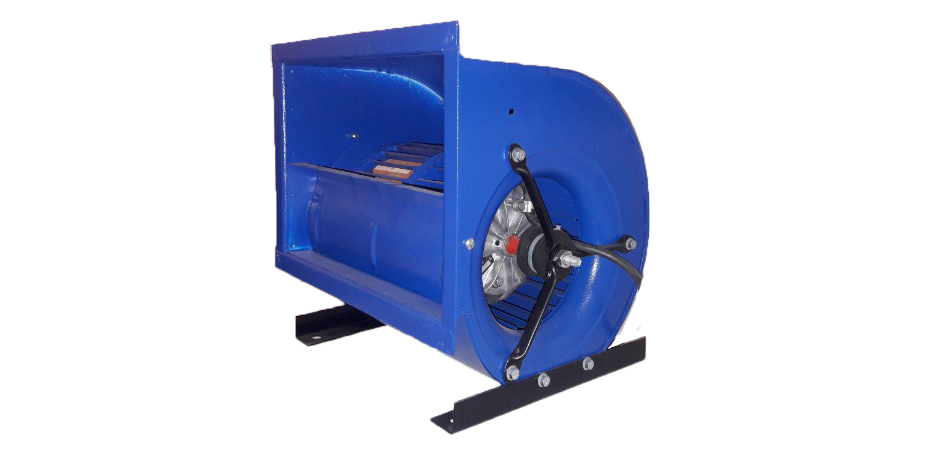

D322-E25-4 (-9 - 9) CFM1600

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Frequency	50 [Hz]
Current max @ free air	2.8 [A]
Power max @ free air	550 [W]
Fan speed @ free air	1050 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.90
Capacitor	10 [μF] 400 [V]
Net Weight	15.5 [kg]
Starting Torque	1.5 [nm]
Starting Current max	4 [A]
Air Temperature max	60 [ºC]

2,642تعداد نمایش :

توضیح
فرم سفارش

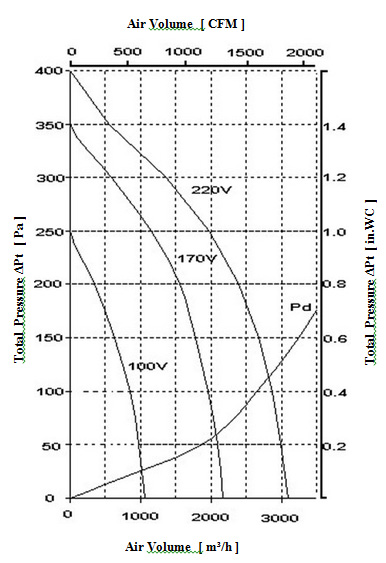

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	50	*100*	*150*	*200*	*250*	*300*
*100*	1025	970	850	625	340
*170*	2025		1965	1780	1550	1155	590
*220*	2795			2670	2400	1968	1360

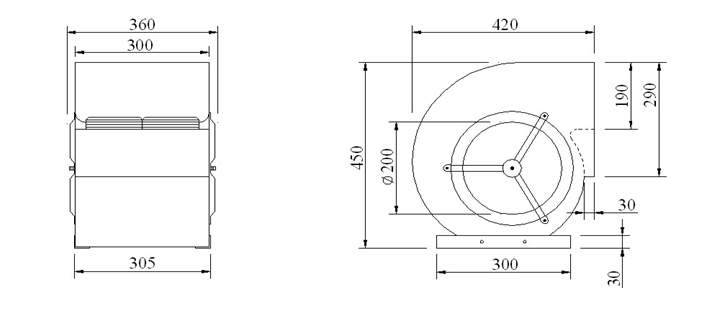

Wheel Diameter = 230 mm = 9 in
35 Blades , 20 mm = 4/5 " Chord Width
Tip Speed   = rpm * 0.012 [m/s]
            Outlet Area = 0.057 [m²] = 0.61 [SQ.FT.]       = rpm * 2.37 [FPM]
