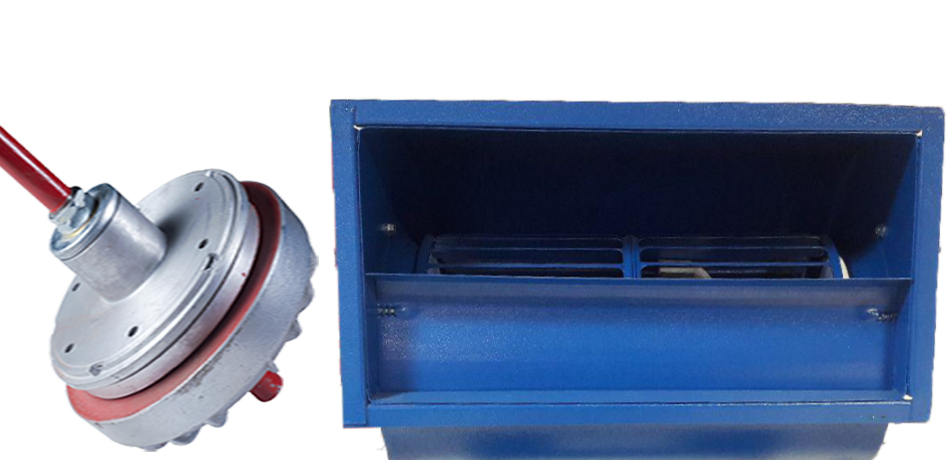

D446-E65-6 (13-15) CFM3300

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Frequency	50 [Hz]
Current max @ free air	4.7 [A]
Power max @ free air	1000 [W]
Fan speed @ free air	700 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.90
Capacitor	30 [μF] 400 [V]
Net Weight	30 [kg]
Starting Torque	4 [nm]
Starting Current max	7 [A]
Air Temperature max	60 [ºC]

2,051تعداد نمایش :

توضیح
فرم سفارش

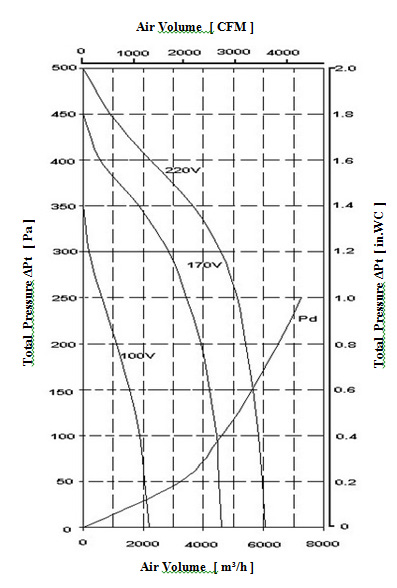

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	100	200	300	350	400	450
*100*	2080	1880	1125	180
*170*	4560	4450	3910	2850	1850	550
*220*	5620		5405	4570	3660	2225	900

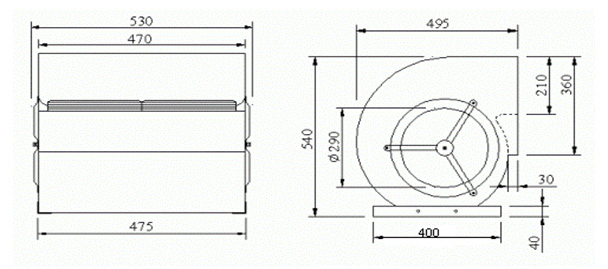

Wheel Diameter = 330 mm = 13 in
40 Blades , 25 mm = 1 " Chord Width
Tip Speed   = rpm * 0.017 [m/s]
                   = rpm * 3.40 [FPM]
Outlet Area = 0.099 [m²] = 1.06 [SQ.FT.]
