ونتیلاتورهای سانتریفیوژ دوطرفه تکفاز

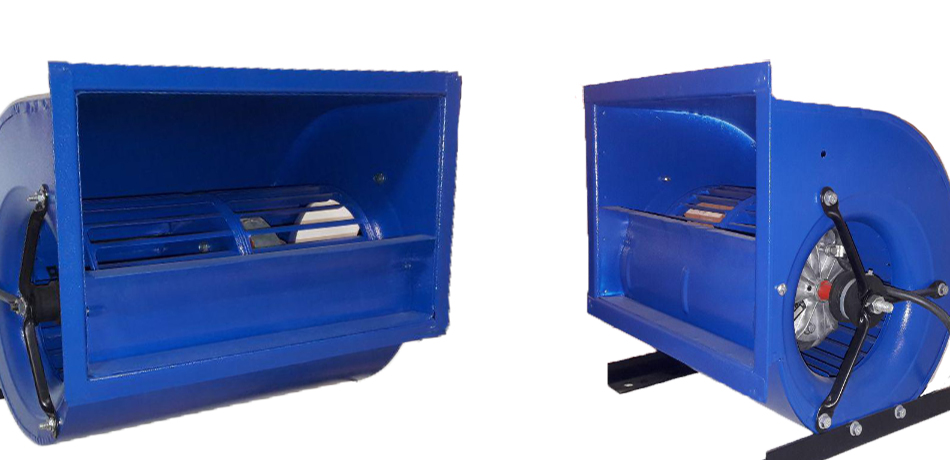

D442-E65 (6) CFM3000

D442-E65 (6) CFM3000

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Frequency	50 [Hz]
Current max @ free air	3.5 [A]
Power max @ free air	750 [W]
Fan speed @ free air	850 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.95
Capacitor	25 [μF] 400 [V]
Net Weight	22 [kg]
Starting Torque	3.5 [nm]
Starting Current max	7 [A]
Air Temperature max	60 [ºC]

3,042تعداد نمایش :

توضیح
فرم سفارش

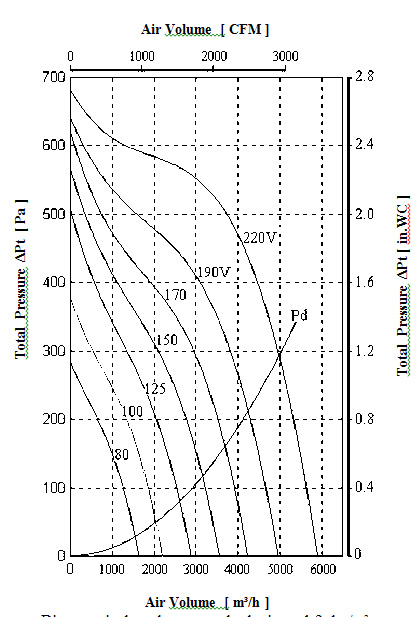

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [V]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	*100*	*250*	*400*	*500*	*600*
80	1525	1260	230
*100*	2040	1845	925
*125*	2610	2530	1720	560	25
*150*	3135		2450	1095	340
*170*	3710		3260	1905	730	90
*190*	4250		4065	3080	1585	310
*220*	4980			4475	3710	1320

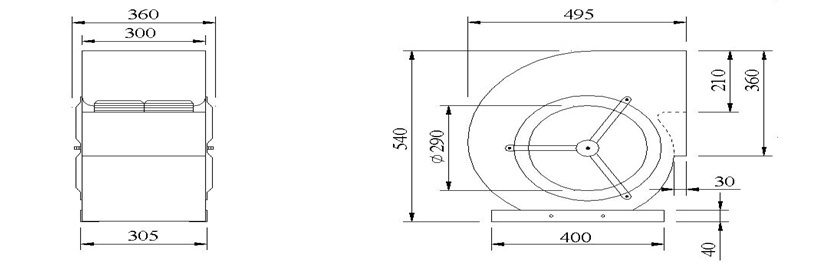

Wheel Diameter = 333 mm = 13 1/8 "
                                                                              50 Blades , 20 mm = 4/5 " Chord Width
                                                                Tip Speed   = rpm * 0.017 [m/s]
                   = rpm * 3.45 [FPM]
                                                                              Outlet Area = 0.063[m²] = 0.67[SQ.FT.]

Voltage [V]	Sound Pressure Level dB(A)
Voltage [V]	80	*100*	*125*	*150*	*170*	*190*	*220*
Inlet	51	55	60	64	66	69	71
Outlet	52	57	61	65	67	70	73
