ونتیلاتورهای سانتریفیوژ دوطرفه تکفاز

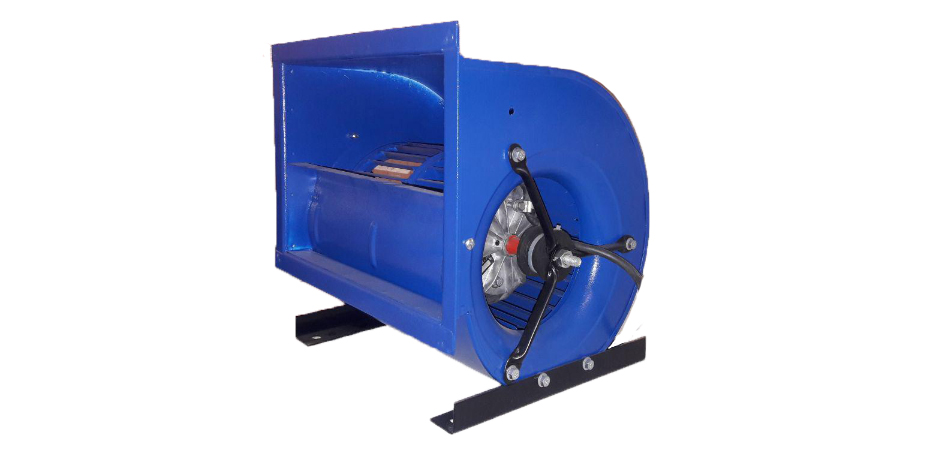

D322-E25-6 (9-9) CFM1200

D322-E25-6 (9-9) CFM1200

مشخصات فنی
Voltage Range
Frequency
Current max @ free air
Power max @ free air
Fan speed @ free air
Insulation Class
Protection Class
(Power Factor (cos φ
Capacitor
Net Weight
Starting Torque
Starting Current max
Air Temperature max

2,342تعداد نمایش :

توضیح
فرم سفارش

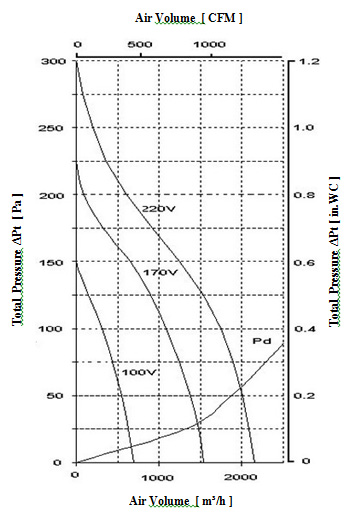

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	50	*100*	*150*	*200*	*250*	*275*
*100*	685	550	310
*170*	1465	1375	1090	650	85
*220*	1980		1745	1240	600	200	75

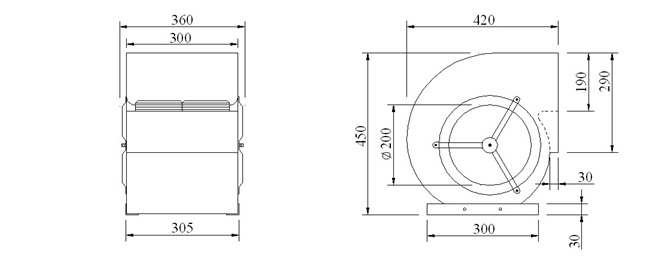

Wheel Diameter = 230 mm = 9 in
35 Blades , 20 mm = 4/5 " Chord Width
Tip Speed   = rpm * 0.012 [m/s]
                Outlet Area = 0.057 [m²] = 0.61 [SQ.FT.]   = rpm * 2.37 [FPM]
