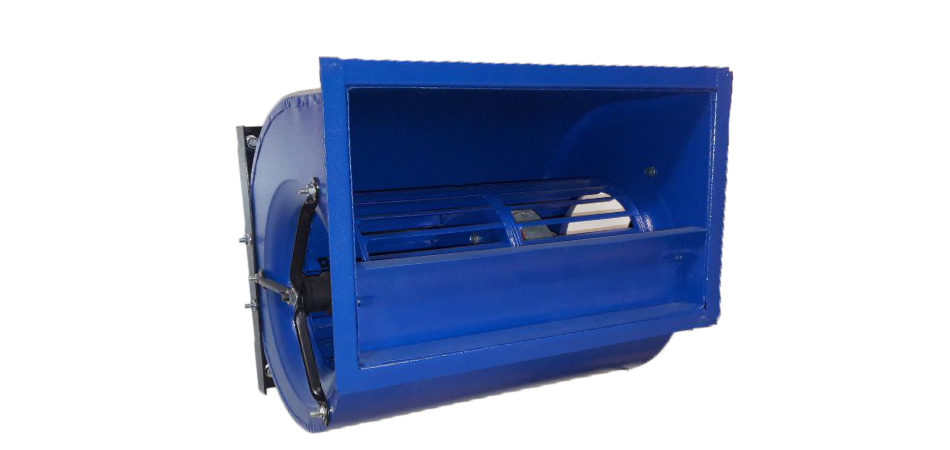

D646-E65-6 (13-15) CFM4100

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Frequency	50 [Hz]
Current max @ free air	5.5 [A]
Power max @ free air	1150 [W]
Fan speed @ free air	650 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.95
Capacitor	30 [μF] 400 [V]
Net Weight	34 [kg]
Starting Torque	4 [nm]
Starting Current max	7 [A]
Air Temperature max	60 [ºC]

2,467تعداد نمایش :

توضیح
فرم سفارش

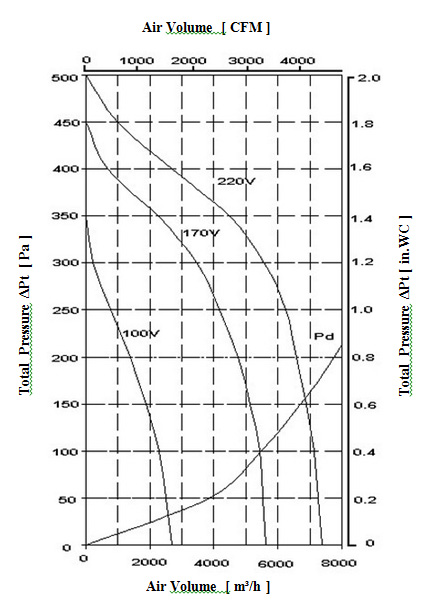

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	100	200	300	350	400	450
*100*	2540	2295	1375	220
*170*	5420	5430	4770	3455	2240	685
*220*	6855		6590	5575	4465	2695	990

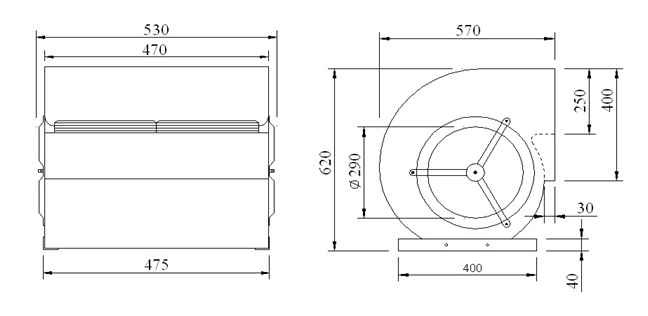

Wheel Diameter = 330 mm = 13 in
40 Blades , 25 mm = 1 " Chord Width
Tip Speed   = rpm * 0.017 [m/s]
                   = rpm * 3.4 [FPM]
Outlet Area = 0.118 [m²] = 1.26 [SQ.FT.]
