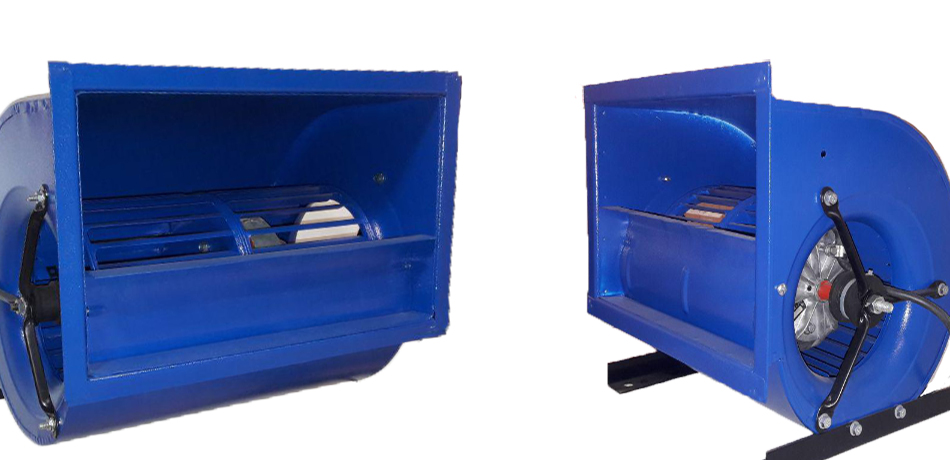

D114-E10-4(7-13) CFM=1000

مشخصات فنی
Voltage Range 100 ~ 220 [V]
Frequency 50 [Hz]
Current max @ free air 1.2 [A]
Power max @ free air 230 [W]
Fan speed @ free air 900 [rpm]
Insulation Class H
Protection Class IP65
(Power Factor (cos φ 0.90
Capacitor 6 [μF] 400 [V]
Net Weight 8 [kg]
Starting Torque 1.5 [nm]
Starting Current max 2 [A]
Air Temperature max 60 [ºC]
2,709تعداد نمایش :

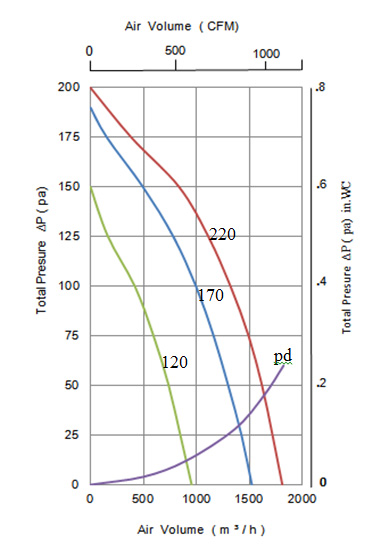

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part    related to Fan Outlet Area (Curve for free blowing fan).  Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure   is shown below system line Pd and Static     Pressure is shown above that line

Voltage [ V ]
Air Volume  [ m³/h ]  @  ρ=1.2  kg/m³
Free Air
Total  Pressure  ΔPt [Pa]
50 75 100 150 200

120

860

737

594

418

0



170

1370

1298

1160

994

495

0

220

1630

1600

1490

1320

836

0

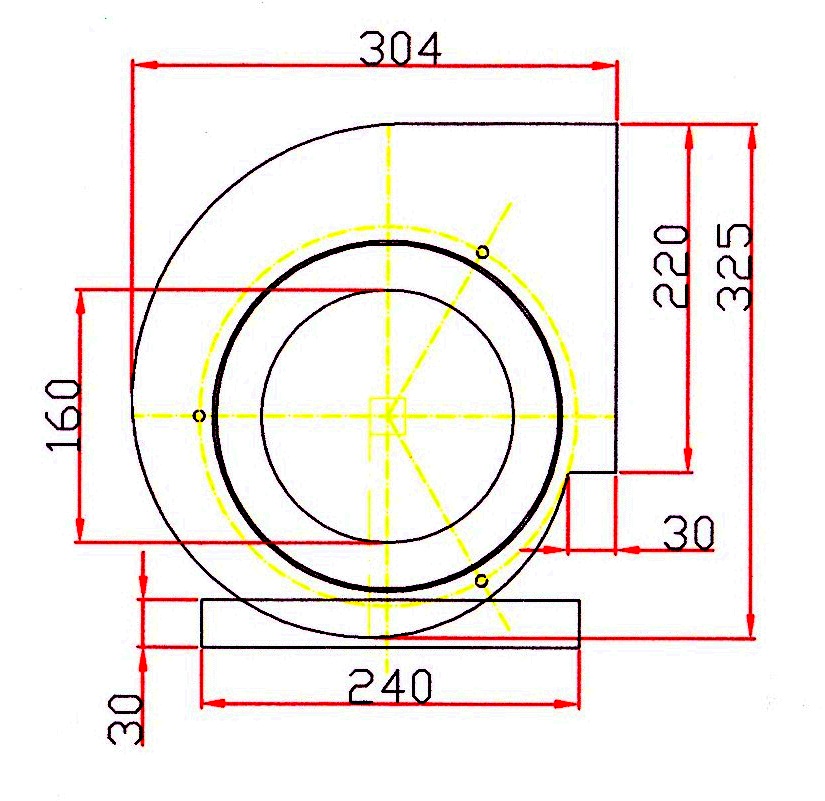

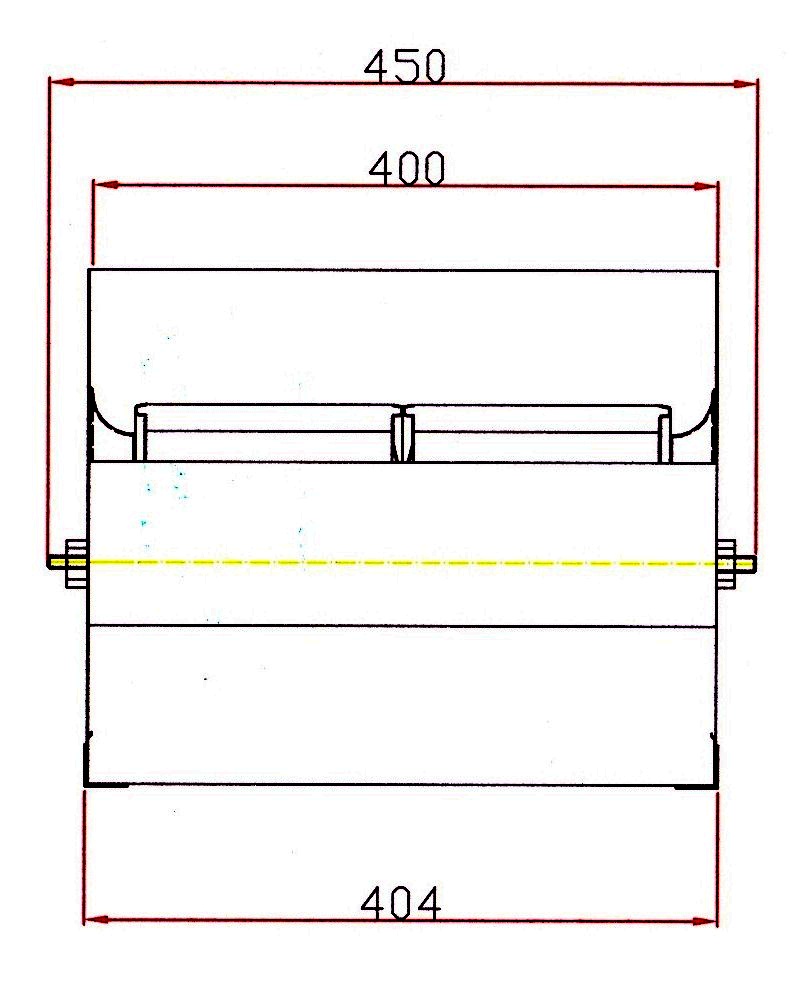

Wheel Diameter = 180 mm = 7 in
24 Blades , 25 mm =  (4/5)" Chord Width
Tip Speed   = rpm * 0.012 [m/s]
                Outlet Area = 0.048 [m²] = 0.52 [SQ.FT.]= rpm * 2.37 [FPM

Voltage [ V ] Sound Pressure Level in dB(A)

100

170

220
Inlet

46

59

64
Outlet

48

60

65
