E223-E25-6 (9 - 7) CFM850

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Starting Torque	50 [Hz]
Starting Current max	1.7 [A]
Protection Class	340 [W]
Power max @ free air	850 [rpm]
Net Weight	H
Insulation Class	IP65
Frequency	0.90
Fan speed @ free air	10 [μF] 400 [V]
Current max @ free air	13.5 [kg]
Capacitor	1.5 [nm]
Air Temperature max	4 [A]
(Power Factor (cos φ	60 [ºC]

1,970تعداد نمایش :

توضیح
فرم سفارش

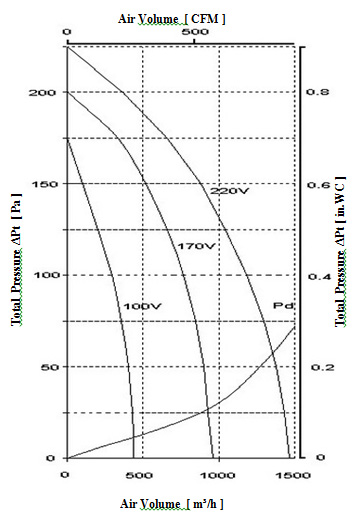

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	50	*100*	*125*	*150*	*175*	*200*
*100*	425	405	295	200	100
*170*	905	900	770	660	520	335
*220*	1365		1185	1040	880	660	365

Wheel Diameter = 230 mm = 9 in
28 Blades , 25 mm = 1 " Chord Width
Tip Speed   = rpm * 0.012 [m/s]
                   = rpm * 2.37 [FPM]
Outlet Area = 0.038 [m²] = 0.40 [SQ.FT.]
