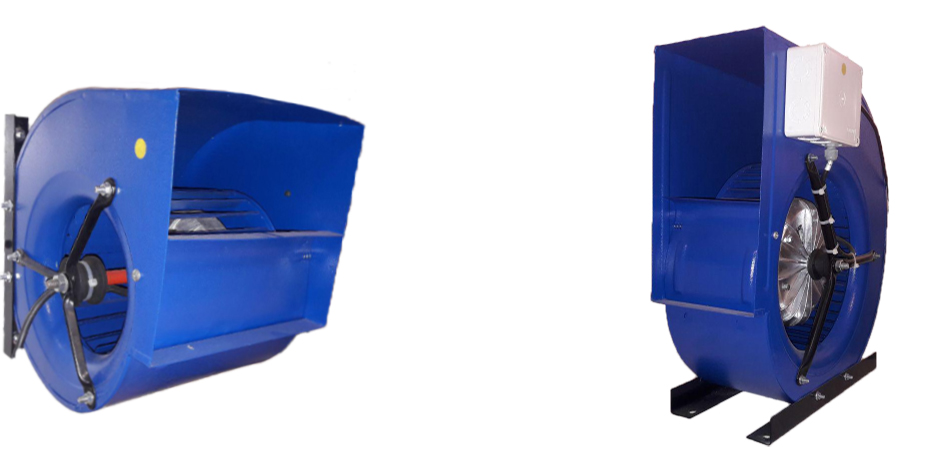

E221-E25-6 (9 - 5) CFM650

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Starting Torque	50 [Hz]
Starting Current max	1.5 [A]
Protection Class	300 [W]
Power max @ free air	920 [rpm]
Net Weight	H
Insulation Class	IP65
Frequency	0.90
Fan speed @ free air	10 [μF] 400 [V]
Current max @ free air	12.5 [kg]
Capacitor	1.5 [nm]
Air Temperature max	4 [A]
(Power Factor (cos φ	60 [ºC]

2,104تعداد نمایش :

توضیح
فرم سفارش

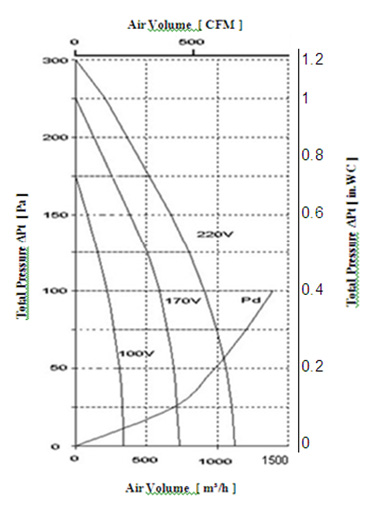

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	50	*100*	*150*	*175*	*200*	*225*
*100*	325	310	225	80
*170*	695	690	592	385	255	125
*220*	1050		910	670	520	365	210

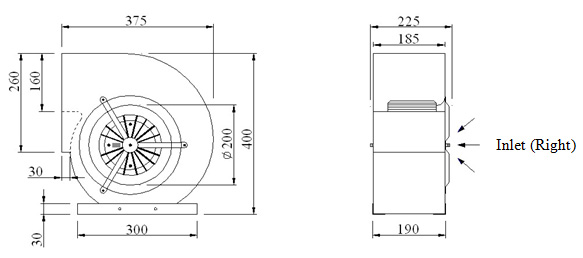

Wheel Diameter = 230 mm = 9 in
35 Blades , 20 mm = 4/5 " Chord Width
Tip Speed   = rpm * 0.012 [m/s]
                   = rpm * 2.37 [FPM]
Outlet Area = 0.03 [m²] = 0.32 [SQ.FT.]
