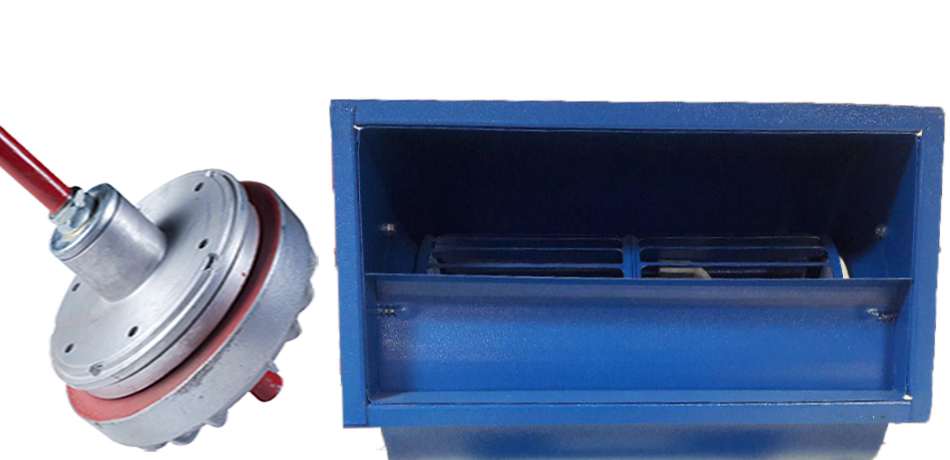

D226 -E25-6 (9- 15) CFM1700

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Frequency	50 [Hz]
Current max @ free air	2.3 [A]
Power max @ free air	450 [W]
Fan speed @ free air	700 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.90
Capacitor	10 [μF] 400 [V]
Net Weight	17 [kg]
Starting Torque	1.5 [nm]
Starting Current max	4 [A]
Air Temperature max	60 [ºC]

3,530تعداد نمایش :

توضیح
فرم سفارش

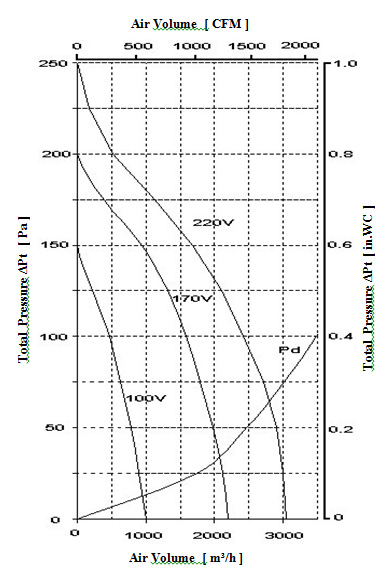

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	50	*100*	*150*	*175*	*200*	*225*
*100*	990	790	465
*170*	2090	1970	1580	945	390
*220*	2880		2410	1685	1135	520	170

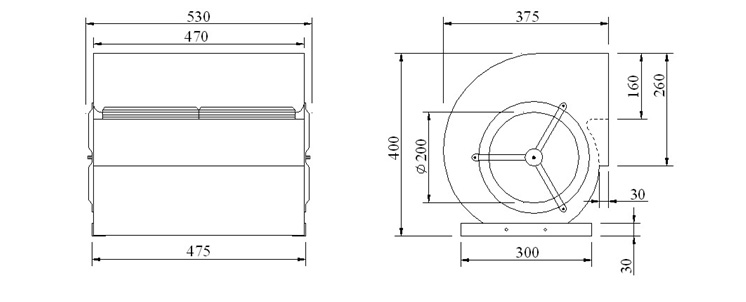

Wheel Diameter = 230 mm = 9 in
28 Blades , 25 mm = 1 " Chord Width
Tip Speed   = rpm * 0.012 [m/s]
                   Outlet Area = 0.075 [m²] = 0.81 [SQ.FT.]= rpm * 2.37 [FPM]
