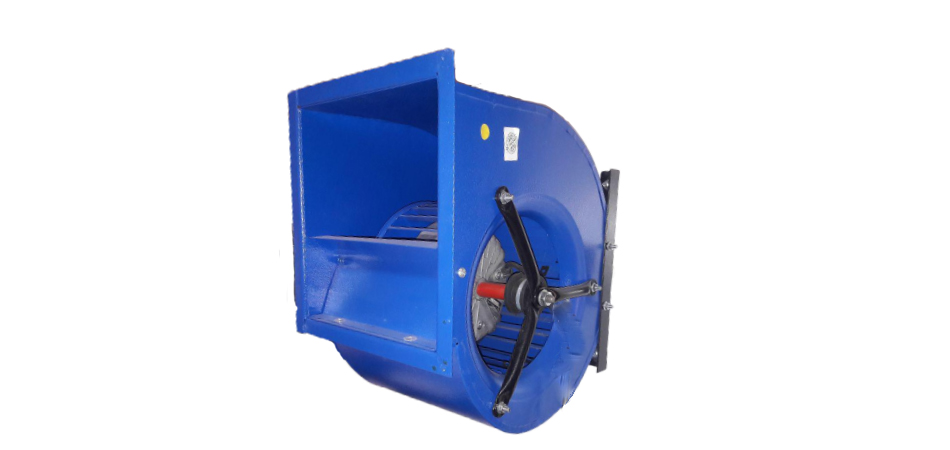

E225/E25-6 (9 - 8) CFM1000

مشخصات فنی
Voltage Range 100 ~ 220 [V]
Starting Torque 50 [Hz]
Starting Current max 1.8 [A]
Protection Class 350 [W]
Power max @ free air 850 [rpm]
Net Weight H
Insulation Class IP65
Frequency 0.90
Fan speed @ free air 10 [μF] 400 [V]
Current max @ free air 14.5 [kg]
Capacitor 1.5 [nm]
Air Temperature max 4 [A]
(Power Factor (cos φ 60 [ºC]
1,873تعداد نمایش :

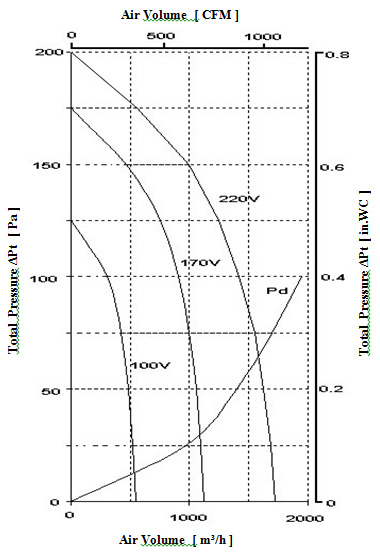

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part    related to Fan Outlet Area (Curve for free blowing fan).  Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure   is shown below system line Pd and Static     Pressure is shown above that line
Voltage [ V ]
Air Volume  [ m³/h ]  @  ρ=1.2  kg/m³
Free Air
Total  Pressure  ΔPt [Pa]

50

75

100

125

150

175

100

535

480

425

305







170

1070

1055

1000

910

755

470



220

1590



1550

1420

1250

1000

555

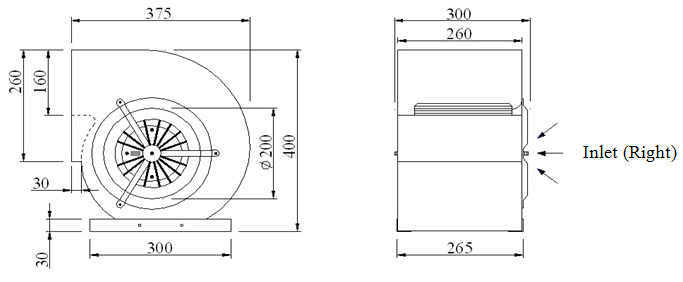

Wheel Diameter = 230 mm = 9 in
28 Blades , 25 mm =  1 " Chord Width
Tip Speed   = rpm * 0.012 [m/s]
                = rpm * 2.37 [FPM]
Outlet Area = 0.042 [m²] = 0.45 [SQ.FT.]

Voltage [ V ] Sound Pressure Level in dB(A)

100

170

220

Inlet

41

58

62

Outlet

42

58

63
