E225-E25-4 (9 - 8) CFM1300

مشخصات فنی
Voltage Range 100 ~ 220 [V]
Starting Torque 50 [Hz]
Starting Current max 2.4 [A]
Protection Class 470 [W]
Power max @ free air 1100 [rpm]
Net Weight H
Insulation Class IP65
Frequency 0.90
Fan speed @ free air 10 [μF] 400 [V]
Current max @ free air 14.5 [kg]
Capacitor 1.5 [nm]
Air Temperature max 4 [A]
(Power Factor (cos φ 60 [ºC]
1,862تعداد نمایش :

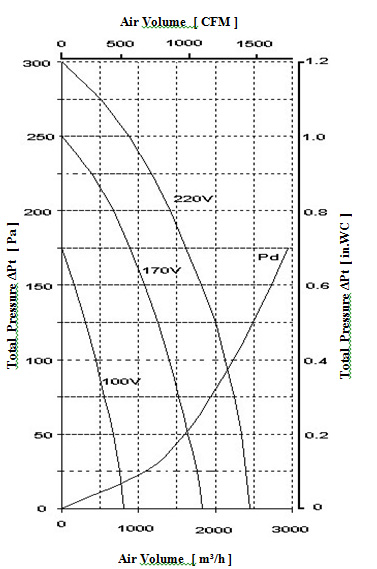

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part    related to Fan Outlet Area (Curve for free blowing fan).  Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure   is shown below system line Pd and Static     Pressure is shown above that line

Voltage [ V ]
Air Volume  [ m³/h ]  @  ρ=1.2  kg/m³
Free Air
Total  Pressure  ΔPt [Pa]

50

100

150

200

250

275

100

780

675

445

155







170

1625

1640

1395

1075

675





220

2170



2130

1820

1410

875

505

Wheel Diameter = 230 mm = 9 in
28 Blades , 25 mm =  1 " Chord Width
Tip Speed   = rpm * 0.012 [m/s]
                   = rpm * 2.37 [FPM]
Outlet Area = 0.042 [m²] = 0.45 [SQ.FT.]

Voltage [ V ] Sound Pressure Level in dB(A)

100

170

220

Inlet

44

62

66

Outlet

45

63

68
