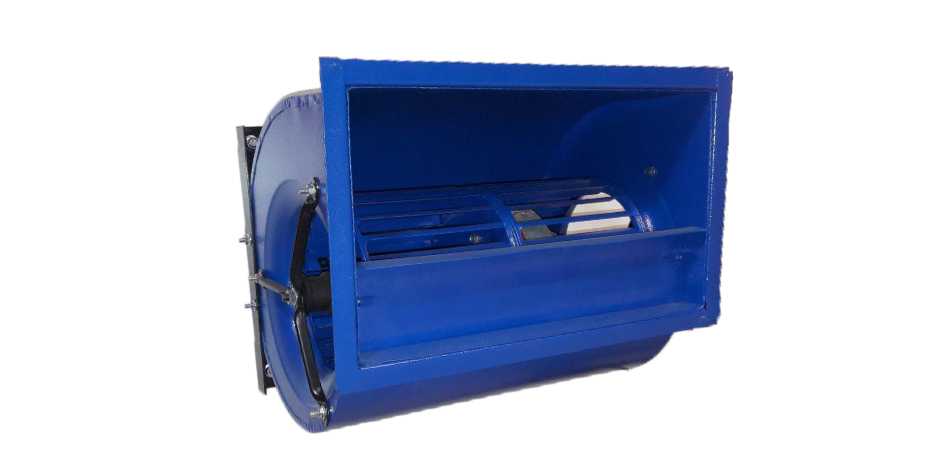

D324-E25-6 (9 - 13) CFM1600

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Frequency	50 [Hz]
Current max @ free air	2.1 [A]
Power max @ free air	420 [W]
Fan speed @ free air	750 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.90
Capacitor	10 [μF] 400 [V]
Net Weight	16.5 [kg]
Starting Torque	1.5 [nm]
Starting Current max	4 [A]
Air Temperature max	60 [ºC]

2,174تعداد نمایش :

توضیح
فرم سفارش

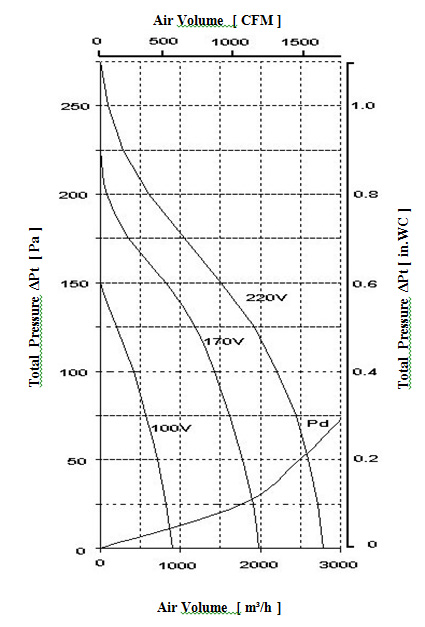

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	50	*100*	*150*	*200*	*225*	*250*
*100*	895	715	420
*170*	1890	1780	1425	825	85
*220*	2560		2200	1510	605	280	90

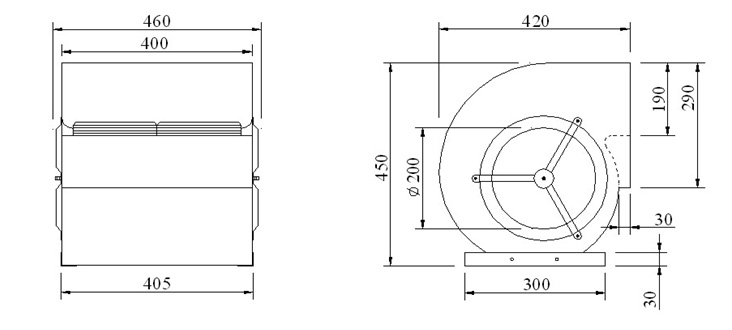

Wheel Diameter = 230 mm = 9 in
28 Blades , 25 mm = 1 " Chord Width
Tip Speed   = rpm * 0.012 [m/s]
                 Outlet Area = 0.076 [m²] = 0.82 [SQ.FT.] = rpm * 2.37[FPM]
