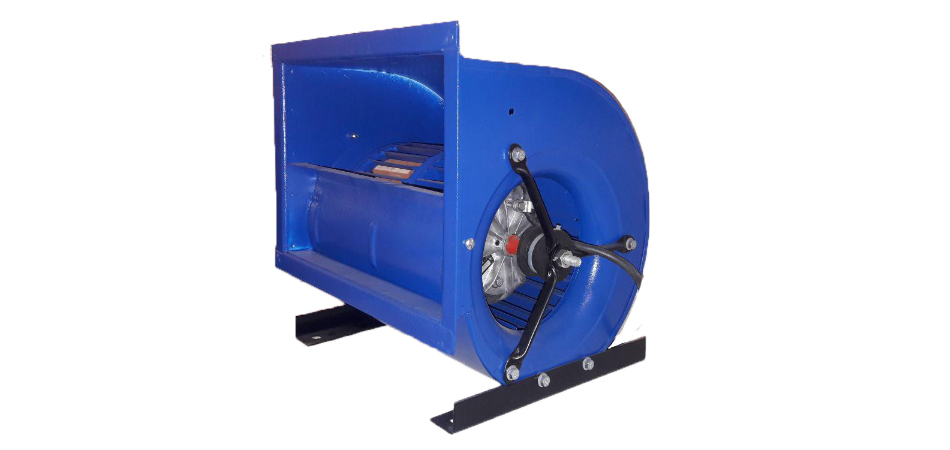

D444-E65 (6) CFM3000

مشخصات فنی
Voltage Range	100 – 220 [V]
Frequency	50 [Hz]
Current max @ free air	4.5 [A]
Power max @ free air	950 [W]
Fan speed @ free air	700 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.95
Capacitor	30 [μF] 400 [V]
Net Weight	28 [kg]
Starting Torque	4 [nm]
Starting Current max	7 [A]
Air Temperature max	60 [ºC]

2,464تعداد نمایش :

توضیح
فرم سفارش

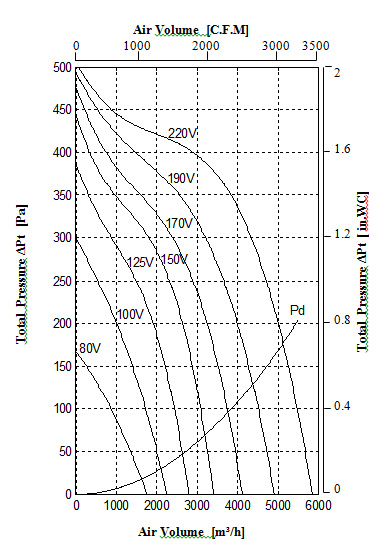

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [V]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	100	200	300	400	500
80	1610	870
100	2080	1710	1000
125	2620	2440	1900	880
150	3180	3070	2620	1810	340
170	3750	3730	3210	2400	720
190	4360		3980	3200	1510
220	5100		4980	4330	2930	80

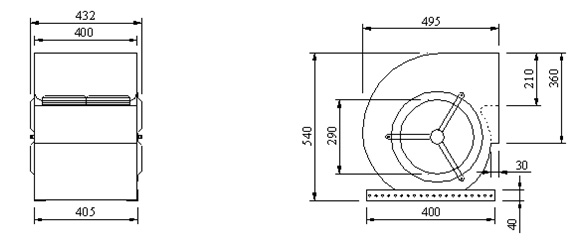

Wheel Diameter   = 333 mm = 13 1/8"
40Blades , 25 mm = 7/8" Chord Width           Tip Speed    = rpm * 0.017 [m/s]
                     = rpm * 3.45 [FPM]
Outlet Area = 0.083 [m²] = 0.89 [SQ.FT
