ونتیلاتورهای سانتریفیوژ دوطرفه تکفاز

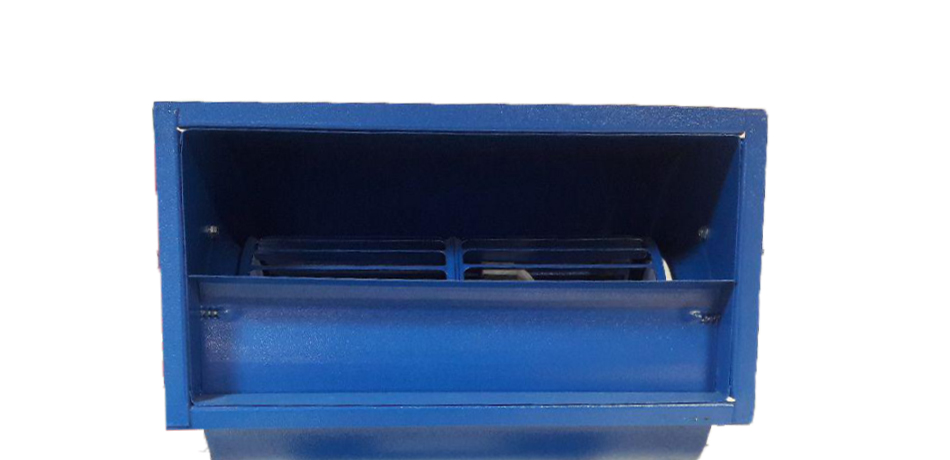

D542-E65-6 CFM3500

D542-E65-6 CFM3500

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Frequency	50 [Hz]
Current max @ free air	4.5 [A]
Power max @ free air	950 [W]
Fan speed @ free air	700 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.95
Capacitor	30 [μF],400 [V]
Net Weight	30 [kg]
Starting Torque	4 [nm]
Starting Current max	7 [A]
Air Temperature max	60 [ºC]

2,313تعداد نمایش :

توضیح
فرم سفارش

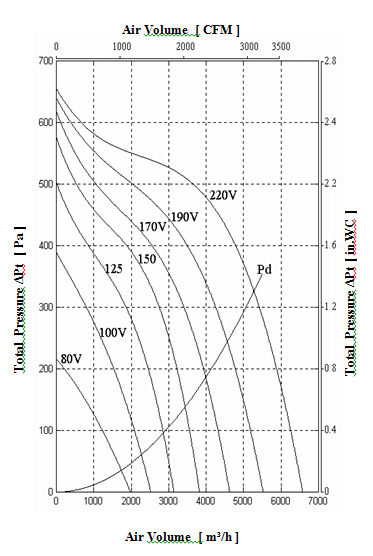

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [V]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	*100*	*250*	*400*	*500*	*600*
80	1730	1220
*100*	2270	2080	1200
*125*	2850	2840	2200	870
*150*	3440		3010	1880	530
*170*	3980		3680	2550	1060	120
*190*	4560		4520	3480	2030	390
*220*	5270			4780	3650	660

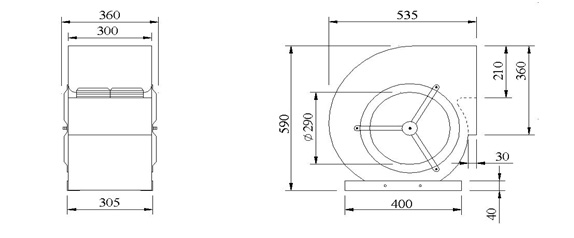

Wheel Diameter = 333 mm = 13 1/8 "
                                                                     50 Blades , 20 mm = 4/5 " Chord Width
                                                         Tip Speed   = rpm * 0.017 [m/s]
                                                                                             = rpm * 3.45 [FPM]
                                                                     Outlet Area = 0.063[m²] = 0.67[SQ.FT.]

Voltage [V]	Sound Pressure Level dB(A)
Voltage [V]	80	*100*	*125*	*150*	*170*	*190*	*220*
Inlet	51	55	61	64	67	70	72
Outlet	53	57	63	65	68	72	74
