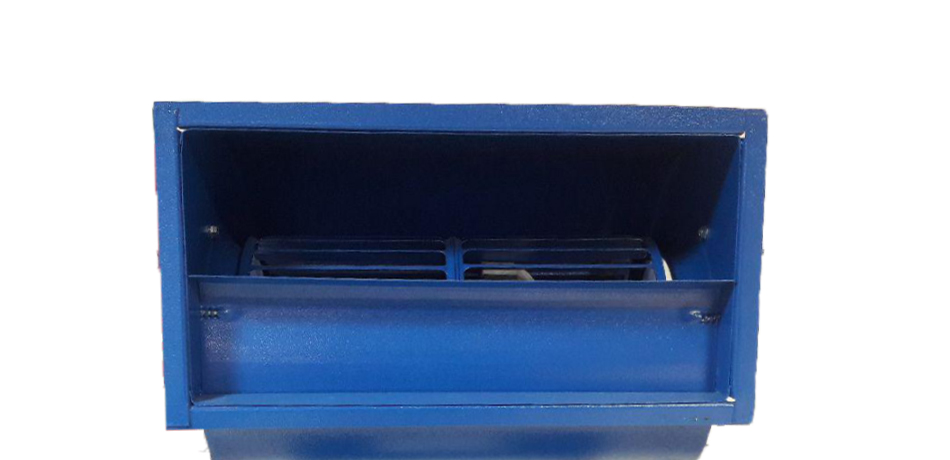

D222 -E25-4 ( 9 - 9) CFM1500

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Frequency	50 [Hz]
Current max @ free air	2.5 [A]
Power max @ free air	500 [W]
Fan speed @ free air	1100 [rpm]
Insulation Class	H
Protection Class	IP65
(Power Factor (cos φ	0.90
Capacitor	10 [μF] 400 [V]
Net Weight	14.5 [kg]
Starting Torque	1.5 [nm]
Starting Current max	4 [A]
Air Temperature max	60 [ºC]

2,537تعداد نمایش :

توضیح
فرم سفارش

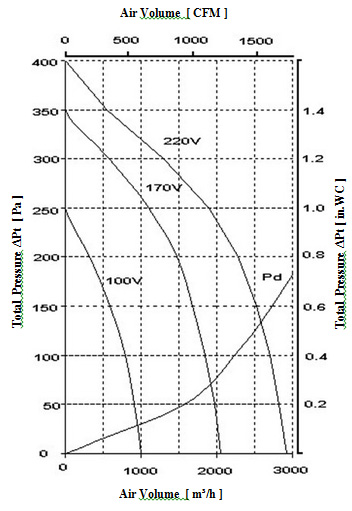

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [ V ]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	50	*100*	*150*	*200*	*250*	*300*
*100*	920	910	800	590	320
*170*	1910		1850	1675	1475	1100	580
*220*	2640			2520	2285	1900	1290

Wheel Diameter = 230 mm = 9 in
35 Blades , 20 mm = 4/5 " Chord Width
Tip Speed = rpm * 0.012 [m/s = rpm * 2.37 [FPOutlet Area = 0.048 [m²] = 0.52 [SQ.FT.]
