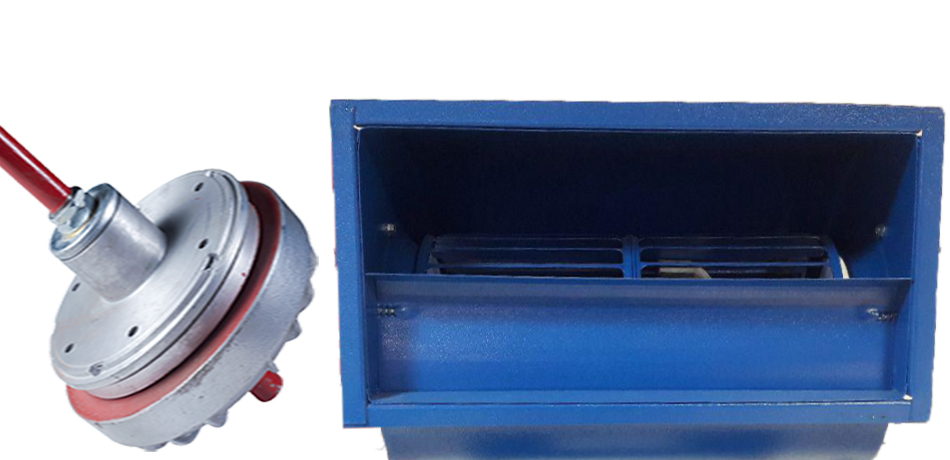

D222 - E25- (6-9) CFM1100

مشخصات فنی
Voltage Range 100 ~ 220 [V]
Frequency 50 [Hz]
Current max @ free air 1.8 [A]
Power max @ free air 350 [W]
Fan speed @ free air 850 [rpm]
Insulation Class H
Protection Class IP65
(Power Factor (cos φ 0.90
Capacitor 10 [μF] 400 [V]
Net Weight 14.5 [kg]
Starting Torque 1.5 [nm]
Starting Current max 4 [A]
Air Temperature max 60 [ºC]
2,273تعداد نمایش :

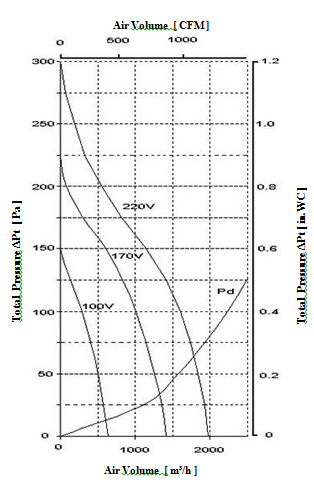

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part    related to Fan Outlet Area (Curve for free blowing fan).  Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure   is shown below system line Pd and Static     Pressure is shown above that line
Voltage [ V ]
Air Volume  [ m³/h ]  @  ρ=1.2  kg/m³
Free Air
Total  Pressure  ΔPt [Pa]

50

100

150

200

250

300

100

630

505

295









170

1340

1260

1005

600

80





220

1835



1600

1140

550

185




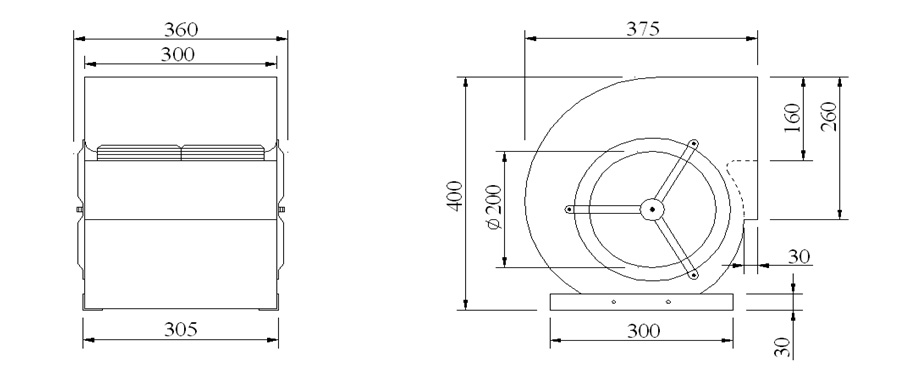

Wheel Diameter = 230 mm = 9 in
35 Blades , 20 mm =  4/5 " Chord Width
Tip Speed   = rpm * 0.012 [m/s]
                     = rpm * 2.37 [FPM]
Outlet Area = 0.048 [m²] = 0.52 [SQ.FT.

Voltage [ V ] Sound Pressure Level in dB(A)

100

170

220

Inlet

44

56

60

Outlet

46

57

61
