E543/E65-6 CFM2000

مشخصات فنی
Voltage Range	100 ~ 220 [V]
Starting Torque	50 [Hz]
Starting Current max	3.5 [A]
Protection Class	750 [W]
Power max @ free air	850 [rpm]
Net Weight	H
Insulation Class	IP65
Frequency	0.98
Fan speed @ free air	25 [μF] 400 [V]
Current max @ free air	23 [kg]
Capacitor	3.5 [nm]
Air Temperature max	7 [A]
(Power Factor (cos φ	60 [ºC]

2,023تعداد نمایش :

توضیح
فرم سفارش

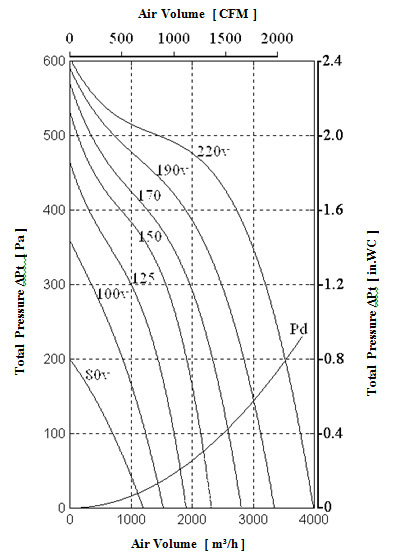

Diagram is based on standard air ρ=1.2 kg/m³.Pd is system curve for dynamical pressure part related to Fan Outlet Area (Curve for free blowing fan). Total Pressure (the sum of the dynamic and static pressures) is shown in relation to the Air Volume, Dynamic pressure is shown below system line Pd and Static Pressure is shown above that line

Voltage [V]	Air Volume [ m³/h ] @ ρ=1.2 kg/m³
	Free Air	Total Pressure ΔPt [Pa]
	Free Air	100	200	300	400	500
80	1110	710
100	1450	1240	870	360
125	1810	1710	1440	1010	310
150	2190	2140	1920	1570	830	120
170	2580		2330	1960	1270	350
190	3010		2850	2480	1900	720
220	3520		3510	3210	2730	1440

Wheel Diameter     = 333 mm = 13 1/8 "
40 Blades , 25 mm = 1 "    Chord Width
Tip Speed    = rpm * 0.017 [m/s]
                      = rpm * 3.45 [FPM]
Outlet Area = 0.049 [m²] = 0.53 [SQ.FT.]
